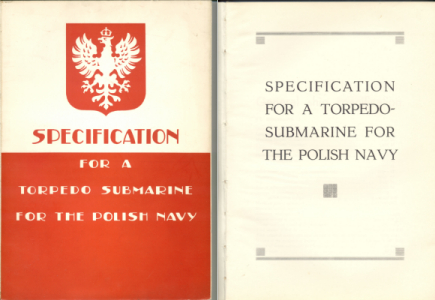

Specyfikacja


Dane techniczne okrętu ORP 'ORZEŁ'

Wyporność: nawodna - 1.110 ton; podwodna - 1.473 tony
Wymiary: długość - 84,00 m, szerokość - 6,7 m, zanurzenie - 4,17 m
Głębokość zanurzenia: dopuszczalna 80 metrów, peryskopowa 10-12 m. czas zanurzania 50 sek.
Napęd: 2 silniki wysokoprężne typu 6QD42Sulzer o łącznej mocy 4.740 KM;
2 silniki elektryczne typu Brown Boveri o łącznej mocy 1.100 KM.("Orzeł")
i 2 silniki Fabryka Silników w Żychlinie ("Sęp"); baterie akumulatorów 200 ogniw.
Zapas normalny paliwa: 67,5 tony oleju napędowego, pełny: 123,5 tony
Prędkość: nawodna 19,4 węzłów; podwodna 9 węzłów
Zasięg pływania: nawodny - 7.000 Mm przy prędkości 10 węzłów; podwodny - 100 Mm przy prędkości 5 węzłów
Uzbrojenie: 1 działo typu Bofors wz.25 kalibru 105 mm na lawecie L/41, 1 podwójne działko plot. wz.36 na lawecie l/60 typu Bofors w wodoszczelnej studzience na kiosku, 1 nkm 13,2 mm wz.XXX na podstawie morskiej R4SM typu Hotchkiss; 12 wyrzutni torpedowych 550 mm z reduktorami do troped 533 mm; (4 wyrzutnie na dziobie, 4 na pokładzie sródokręcia i 2 na rufie, 20 torped).
Czas nieprzerwanego pobytu pod wodą: 20 godzin przy prędkości 5 wezłów
Autonomiczność: 90 dni
Załoga: 6 oficerów oraz 54 podoficerów i marynarzy
Znaki taktyczne: A-85
Stocznia: N.V. Koninklijke Maatschapij 'De Schelde', Vlissingen (Holandia)
Poł.stępki: 14.VIII.1936 r. ; wodowanie: 15.I.1938 r. ; podniesienie bandery: 02.II.1939 r.


ELECTRICAL EQUIPMENT
MATERIAL NUMBER
Accumulators 6 Volt 10
Accumulator element 6 Volts with positive and negative pole 1 set
Batteries for handtorch, large 24
Batteries for handtorch, small 24
Lamps for 6 Volts accumulator handlamps 10
Dry batteries for portable lamp 5
Portable electric lamps with cable and plug 20
Portable navigating lamps 3
Morse lamp 1
Portable electric lamp 'Ratur' 1
Cabin table lamp 15
Portable projector 1
Handtorch 24
Riding light (electric) 2
Navigating light 1
Glass shade for external lights (pressure proof) 5
Glass shade for portable lamps 3
Glass shade for ceiling lamps 10
Glass shade for cabin lamps 15
Accumulator battery for telephone apparatus 1
Normal swan fittings 25
Small swan fittings 25
Brass ring for navigating lights 1
Postable fans 16
Sockets for portable lamps 10
Sockets for portable lamps (pressure proof) 6
Electric bulb, metal, vacuum, 3,2 V. Ed. Swarf 60
Electric bulb, metal, vacuum, 3/4 V. Ed. Swarf 12
Electric bulb, metal, vacuum, 12/16 V. 50 W. S.F. 15
Electric bulb, metal, vacuum, 12/16 V. small S.F. 12
Electric bulb, metal, vacuum, 6/8 V. 6 W. S.F. 20
Electric bulb, metal, vacuum, 120 V. 60 W. S.F. 10
Electric bulb, metal, vacuum, 120 V. 40 W. S.F. 120
Electric bulb, metal, vacuum, 120 V. 25 W. S.F. 300
Electric bulb, metal, vacuum, 120 V. 25 W. (45 x 62) S.F. 100
Electric bulb, for hand torches 60
Electric bulb carbon, 120 V. 60 W. 12
Electric bulb metal, 120 V. 15 W. (20 x 50) S.S.F 100
Electric bulb metal, 120 V. 1000 W. C.F 5
Electric bulb metal, 40 V. 5 W. S.S.F 15
Electric bulb metal, 40 V. 25 W. S.F 12
Electric bulb carbon. 120 V. 3 W. S.F. 520
Electric bulb carbon 120 V. 3 W. S.S.F. 170
Electric bulb metal, 120 V 15 W. S.F. 4
Electric bulb metal, 130 V. 5 W. S.F. Red/blue 4
Electric bulb metal, 20 V. 5 W. Red/blue 4
Electric bulb metal, 120 V. 25 W. (32 x 96) S.F. 10
Armoured cable for portable lamps 500 Meters
Armoured cable for projector 2 x 2 mm. 20 Meters
Armoured cable 3 x 2 mm. 70 Meters
Armoured cable 3 x 6 mm. 50 Meters
Cable for telephone, 4 x 1,25 150 Meters
Flexible cable, 2 x 1,6 120 Meters
One core cable, 1 x 1,6 25 Meters
Slik cable for cabin lamp, 2 x 1 60 Meters
Slik cable, 2 x 1 60 Meters
Cable for shore, 2 x 1 90 Meters
Cable for shore, 2 x 16 180 Meters
Cable for shore, 2 x 2 20 Meters
Cable for shore, 4 x 35 80 Meters
Cable for shore, 4 x 1,5 20 Meters
Cable for telephone 60 Meters
Armoured cable for submarine towing: 16 core, 0,4 mm. 12 steel - 4 copper wires 440 Meters
Telegraph cable 100 Meters
Flexible cable, 2 x 1 100 Meters
Flexible cable, 2 x 2,5 50 Meters
Flexible cable, 4 x 1,5 50 Meters
2 pole w.t. plugs 6 amp. 5 pieces
2 pole for external lights 6
2 pole for portable lamp 10
Internal fittings of switch 30
Internal fittings of charge-over-switch 10
Spring for charge-over-swith main boards 20
Box for shunts 1
Small portable ampére meter 0-100 1
Portable voltmeter, scale 3-15 - 30-300-450 volt 3
Pocket voltmeter 12-120 volt 3
Pocket voltmeter 0-4,5 volt 2
Shunts 10 amp. 1
Shunts 2 amp. 1
Shunts 50 amp. 1
Shunts 100 amp. 1
Shunts 500 amp. 1
Insulation control 1
Ohmmeter 1
Banc for inspecting the accumulators 1
Rubber mattrass for inspecting the accumulators 1
Wrench for connecting units 2
Bedplates 700 x 300 x 15 for discharge of accumularots 4
Cable with 2 terminals for excluding of the circuit spoiled cells of the battery 4
Small bag for cleaning the joins 1
Hard-rubber syphon pipe for accumulator 15 x 20 mm. 10 Meter
Base plate for hoisting the accumulators 2
Rubber pipe 28 x 20 mm. for filling accumulators 20 Meter
Set of tools for deducting iron in the electrolye 1 set
Glass eprouvette with stand and boc. scale 100 cM3 2
Conic bottle 500 cM3 1
Burette with wooden stand, scale 1/10 cM3, till 35 cM3 1
Glass rod 2
Special thermometer, scale 0-60o C 2
Pipes for portable lamps for inspecting cells 1
Protecting masks 1
Bogies for transport of cells, fore and aft 1
Bogies for transport of cells by block transverse 1
Hard rubber mixing spoon 1
Glass eprouvette of 250 cM3. with scale 2
Rubber gloves, large 2
Rubber gloves, small 2
Areometer 2
Rubber syringe with hard rubber tip 1
Insulated joints for measuring intensity of current 1
Insulated joints for measuring current, 25 mm. diam. 1
Thermometers, maximum, for battery tanks 2
Stone pigs, 3 liter 2
Switch joints for charging battery from shore 2
Box tube spanner, special, for lamps 3
Monkey spanner 2
File, round, smooth, 250 mm. 1
File, round, smooth, 350 mm. 1
File, half round, smooth, 200 mm. 1
File, half round, smooth, 250 mm. 1
File, square, half smooth, 100 mm. 1
File, flat, smooth, 300 mm. 1
File, triangular, smooth, 250 mm. 1
File, triangular, half smooth, 100 mm. 1
File, oval, 200 mm. 1
File, oval, 350 mm. 1
File, flat, bastard, 400 mm. 1
File, flat, half smooth, 100 mm. 1
File, half round, half smooth, 200 mm. 1
File, half round, half smooth, 250 mm. 1
Hacksaw blades 6
Adjustable hacksaw 1
Pliers for wire cutting, 125 mm. 2
Pliers for wire cutting, face 1
Pliers for wire cutting 1
Pliers round nose, 150 mm. 2
Pliers flat, 150-160-170 mm. 4
Universal pliers, with shares 125 mm. 1
Universal pliers, with side cutting 2
Adjustable wrenches for taps, 120 mm. 1
Hand drilling post. 450 mm. 1
Drills, with cylindrical fitting, 2, 3, 4, 5, 6, 7, 8, 9, 10 1 set = 9
Screwdrivers, fixed, 150, 200, 300 1 set = 3
Graiser 1
Handhammer, 300, 1000 gram 1 set = 2
Handvice, 3.5 Kg 1
Stocks and dies, taps and wrenches metric threards,
2, 3, 4, 5, 6, 7, 8 mm. 1 set = 7
Soldering bit, 300 gr., 800 gr. 1 set = 2
Cable tip compressor 1 set
Safety goggles, white 2
Steel folding meter (1 Meter) 1
Dustbrush 2
Paint brush Polish No. 4, 5, 6 1 set = 3
Flat spanner, double end, 1 set. from 5 x 5.5 mm. till 32 x 35 mm. 24
Flat spanner, single end, 1 set. from 12 till 26 mm. 3
Tube box spanners, double ended, 1 set, from 9 x 11 till 14 x 16 mm. 4
Handles for hammers 2
Scrwe drivers, double ended, 1 set from 100 till 175 mm. 4


ARMOURE'S EQUIPMENT
DESCRIPTION NUMBER
Tools for mounting periscopes 1 set
Tools for heaving periscopes 1 set
Tools for torpedo-launching-installations 1 set
Spanners 5
Tongs 2 pairs
Screw drivers 2
Chisels 4
Hocksaw (frame) 1
Handdrill 1
Drills of differenced sizes from 1 mm. - 5 mm. diam. 25
File brushes 2
Steek hook (90o) 1
Hammers 3
File-handgrips 2
Paint-brushes 2
Compass rod 2
Scissors 1 pair
Dutch wrench 1
Wrenches 2
File of diffrent sizes 22
Tools for H.P. air armatures 1 set
Tools for L.P. air armatures 1 set
Tools for loading torpedo-tubes 1 set
Tools for mounting air bottles 1 set
Cans, etc. for oil 1 set
Spanners for torpedo slings 3
